AIR NOZZLE
SILVENT X03

Item number: 0X030269798, 0X030169798

  • Stainless steel multi-Laval nozzle

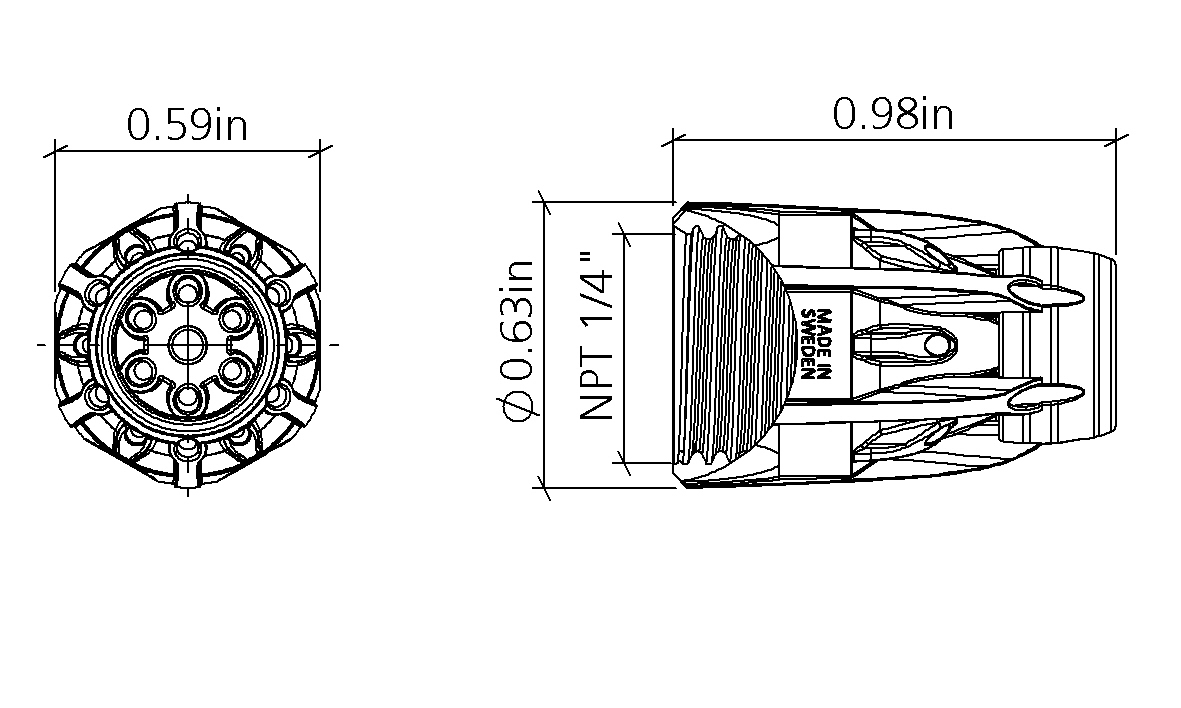

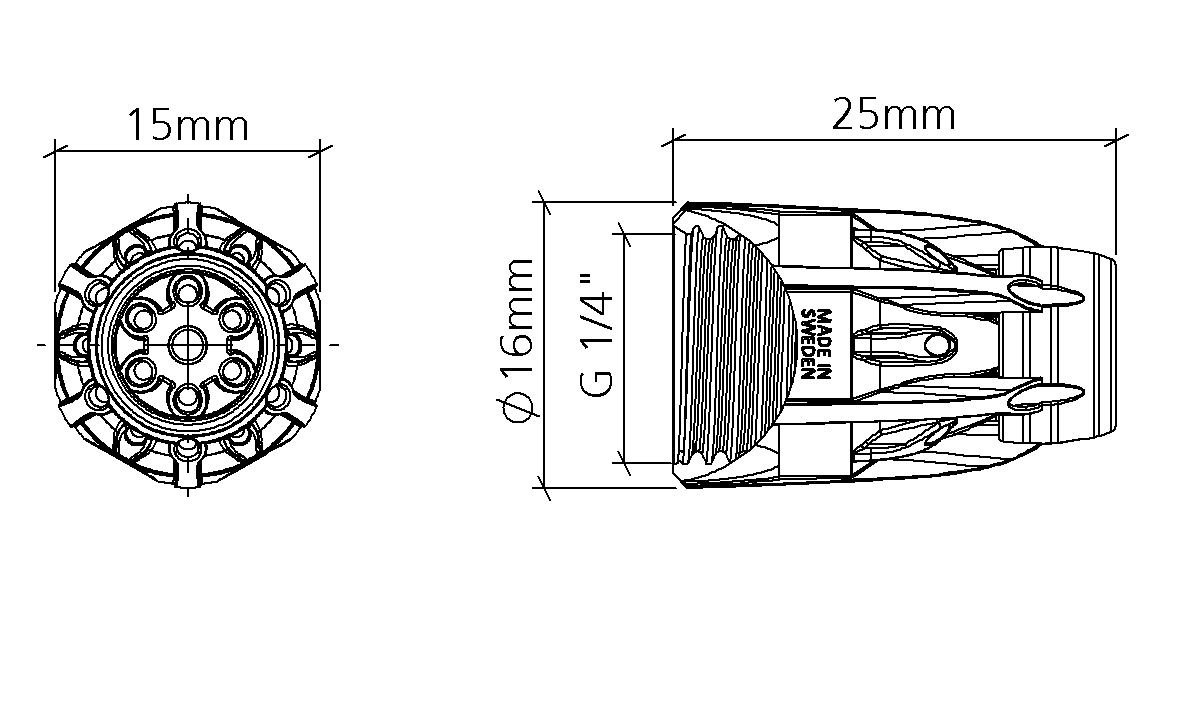

SILVENT X03 is a stainless steel blowing nozzle with patented multi-Laval technology. The energy saving blowing nozzle is part of Silvent’s revolutionary new X-series. The nozzle in the new X series has a completely new and innovative design that creates a concentrated jet of air with reduced turbulence, thus enabling a more targeted, effective blowing force. Thanks to the newly patented technology, the air nozzle’s design optimizes the air pressure’s change from potential energy to aimed concentrated kinetic energy. This allows for maximal use of the air pressure. SILVENT X03 has about three times more blowing force than SILVENT X01. The unique design makes it possible to reduce noise levels during blowing by more than 10dB(A). The blowing nozzle is perfect for environments with high cleanliness requirements, such as the food industry. The nozzle has a 1/4” connection.

Noise reduction 16 dB(A)

Energy savings 23.0 scfm

Technical specifications

See basic information about the technical data. Read more

Instructions for use

Read Silvent Group General Instructions for Use before you install the product.
