Our air nozzles, air knives and air blow guns are designed to reduce sound levels and improve the efficiency of blowing with compressed air.
Blowing with compressed air is common in industry when cleaning, drying, cooling, sorting or transporting objects. Silvent air nozzles are used in fixed installations and make efficient use of compressed air. All Silvent air nozzles feature the optimal combination of high blowing force, low energy consumption and low noise levels.
Air knives are most commonly used to blow away liquids, grime, airborne debris, etc. from surfaces or objects. Silvent air knives create a broad and effective flow of air that produces a pneumatic scraping effect without mechanical contact. All Silvent air knives feature the optimal combination of high blowing force, low energy consumption and low noise levels.
Manual blowing with compressed air is common in industry when cleaning, drying or cooling objects. Silvent air blow guns make efficient use of compressed air. All Silvent air blow guns feature the optimal combination of high blowing force, low energy consumption and low noise levels, at the same time as they are ergonomically designed for professional use.
Some industries and processes need more blowing force than a regular air blow gun can generate. Therefore, Silvent has developed air blow guns with high blowing force. The blowing force ranges from twice as strong up to 30 times stronger than a regular air blow gun. All Silvent air blow guns are safe, quiet and efficient, and are developed for professional use.
The noise from compressed air valves is extremely hazardous, but equipping valve discharge ports with pneumatic mufflers often causes operational disturbances. Silvent pneumatic mufflers have integrated warning indicators. The technology basically entails that the pneumatic muffler itself sets the optimal combination of flow capacity and noise suppression thanks to the dynamic internal filter, which subsequently minimizes operational disturbances and eliminates clogging.
To optimize blowing, it is sometimes necessary to be able to make pressure or blowing angle adjustments, for example. In other cases protection against airborne debris may be needed. Silvent has different types of accessories for easily performing various blowing tasks, optimally and safely.
Item number: 09610169044, 09610269044

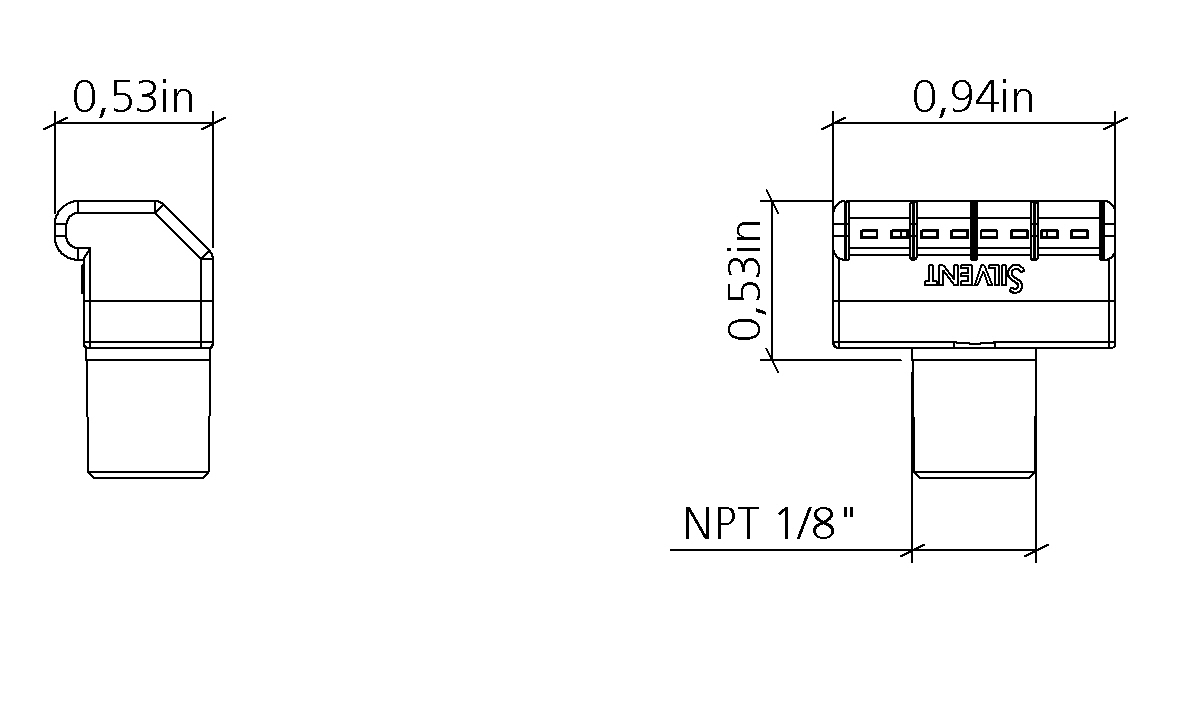

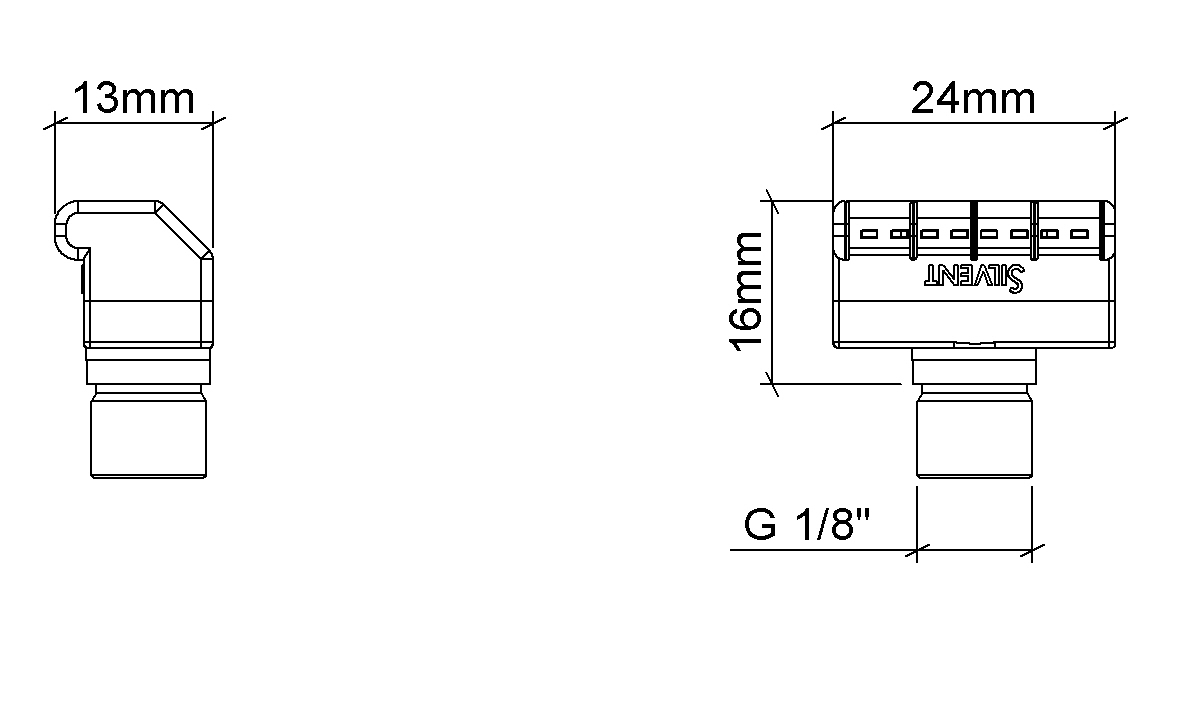

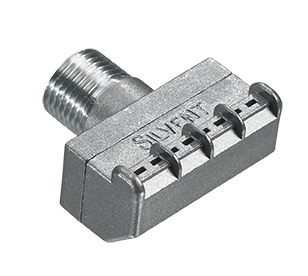

SILVENT 961: a small, angled flat nozzle that generates a broad but thin blowing pattern. Small mounting dimensions make it especially suitable for machine designs where space limitations are a problem. In many cases mounting is facilitated by the fact that the blowing angle is perpendicular to the plane of the threads. Can also be mounted in a manifold array, creating compact, quiet and efficient air knives. The outlet orifices are protected against external forces by fins.
Noise reduction 13 dB(A)
Energy savings 5.9 scfm
Material specification: Zn ZP0410 EN 1284, NBR 70
