AIR NOZZLE

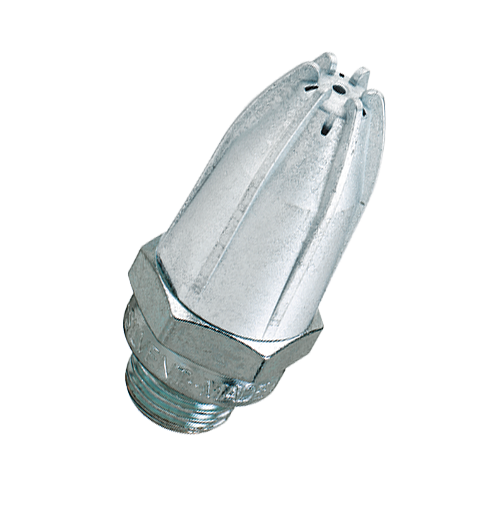

SILVENT 209 L-S

Item number: 02090169145, 02090269145

  • Stainless steel Laval nozzle

SILVENT 209 L-S: made of stainless steel with 1/4” male thread. Withstands high ambient temperatures and suitable for applications involving mechanical wear. SILVENT 209 L-S is part of a new generation of patented Laval nozzles. It is a refinement of Silvent’s 208 and 209 nozzle series and represents an entirely new phase in blowing technology. The effect is achieved by surrounding a core jet moving at supersonic speed with a protective sheath of air running parallel to the direction of the central stream. There is a mix of divergent slots and holes around the Laval orifice that generates a quiet, powerful and laminar air flow. This nozzle provides extremely efficient blowing that utilizes your compressed air optimally.

Noise reduction 17 dB(A)

Energy savings 7.7 scfm

Technical specifications

See basic information about the technical data. Read more

Instructions for use

Read Silvent Group General Instructions for Use before you install the product.
