AIR KNIFE
SILVENT 310 Z+

Item number: 03100169403, 03100269403

  • Modular air knife system (ZYTEL)

SILVENT 310 Z+ is a modular, energy-efficient air knife that generates an extremely strong and effective blowing force with an exceptionally low sound level. Compressed air is optimally used in this air knife. Its unique design introduced a completely new blowing technology feature. The aerodynamic nozzle design achieves the effect by maximizing entrainment of air. Each orifice is also uniquely designed to optimize the entrainment area. SILVENT 310 Z+ modules can easily be combined to achieve the desired length of the air knife (see SILVENT A 12 in accessories).

Noise reduction 26 dB(A)

Energy savings 67.1 scfm

Technical specifications

See basic information about the technical data. Read more

Instructions for use

Read Silvent Group General Instructions for Use before you install the product.

Modular air knife system

SILVENT 310 Z+ and SILVENT 304 Z+ can easily be assembled together. All that is needed is the accessory SILVENT A 12. It has never been easier to make an air knife that fits your specific application.

310 Z+Blowing forceNoise levelConnectionsBlowing coverage
NumberN (Ibs)dB(A)Number100 (4")200 (8")300 (12")
130.0 (6.6)901192 (7.56")232 (9.13")272 (10.71")
260.0 (13.2)932336 (13.23")376 (14.80")416 (16.38")
390.0 (19.9)953480 (18.90")520 (20.47")560 (22.05")
4120.0 (26.5)963624 (24.57")664 (26.14")704 (27.72")
5150.0 (33.1)974768 (30.24")808 (31.81")848 (33.39")
6180.0 (39.7)985912 (35.91")952 (37.48")992 (39.06")
7210.0 (46.3)9861056 (41.57")1096 (43.15")1136 (44.72")

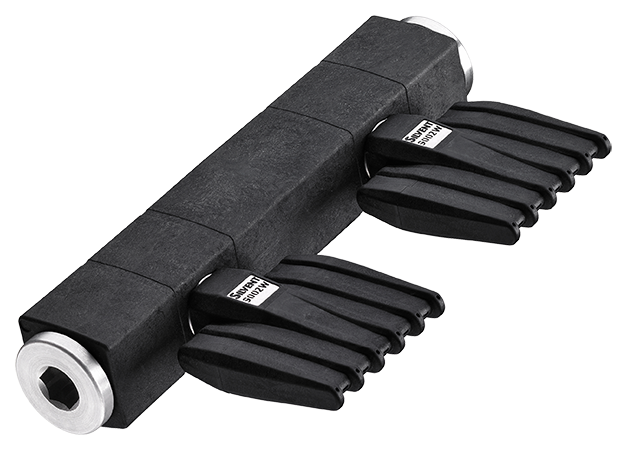

SILVENT 304 Z+ & SILVENT 310 Z+
