X05-M400 - Silvent

AIR NOZZLE
SILVENT X05-M400

Item number: 0X050570072, 0X050670072

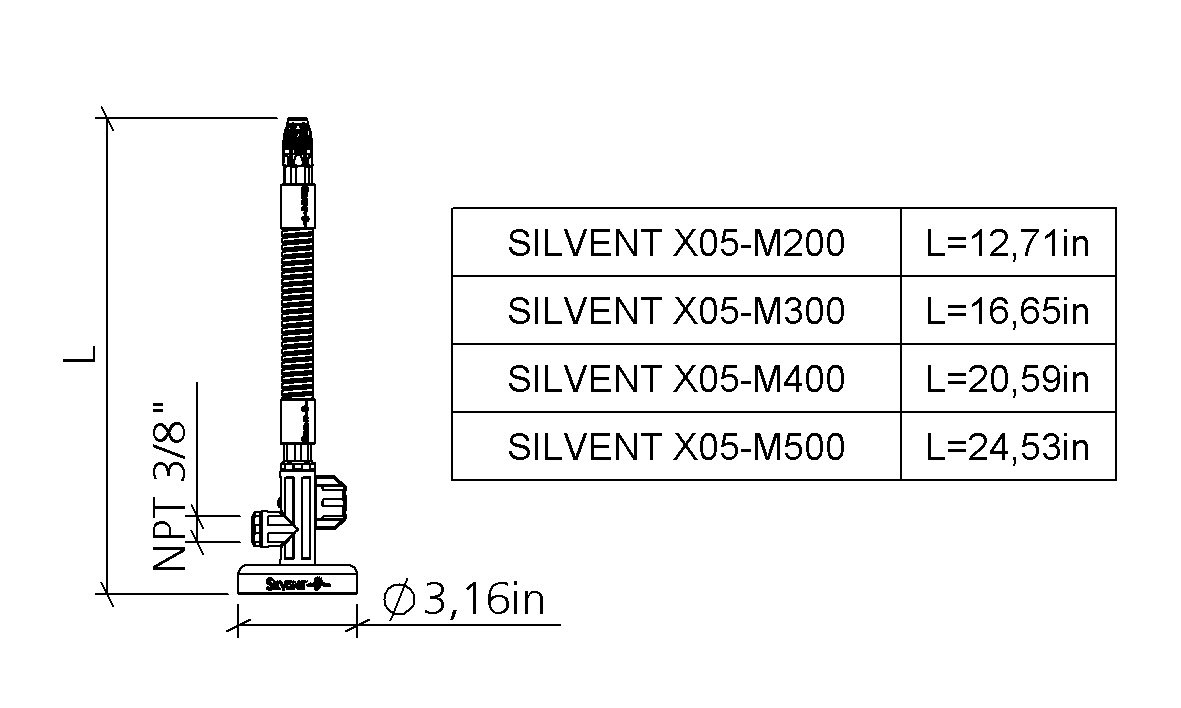

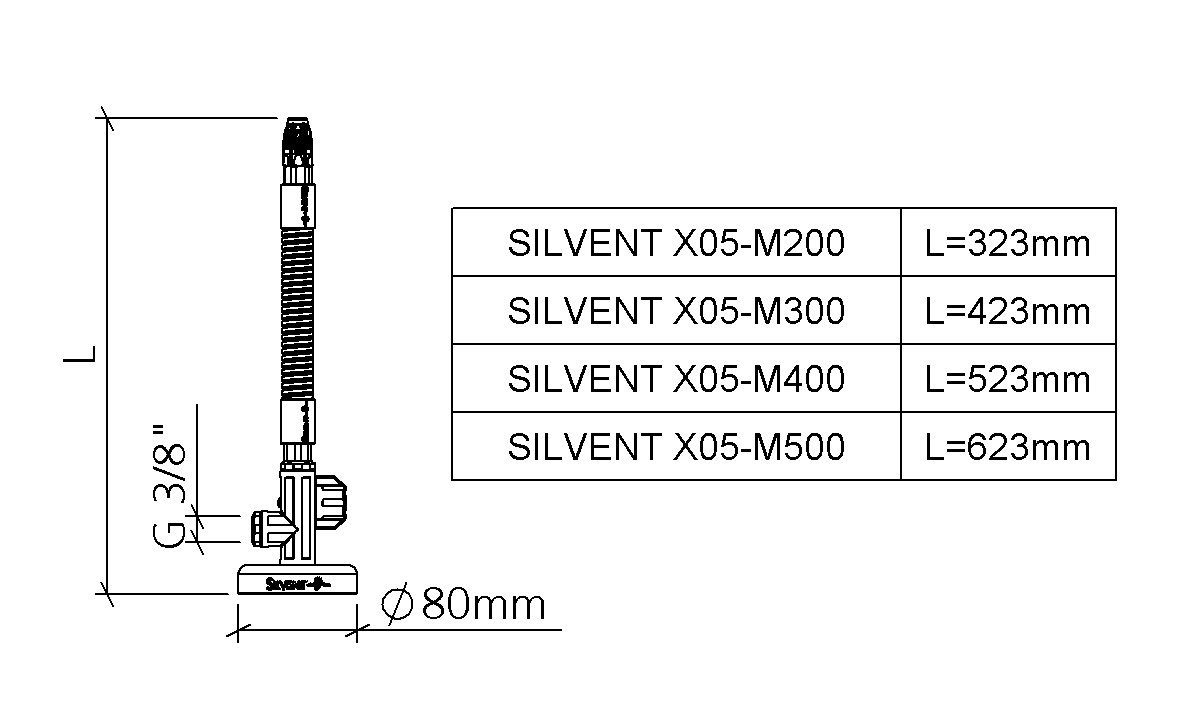

SILVENT X05-M200 - X05-M500: Magnetic base with flow control, FlexBlow hose and nozzle for quick installation and easy adjustment to the correct blowing angle. FlexBlow hose maintains the desired position, even at high pressures. Available in 4 standard lengths. Otherwise, the same performance as X05.

Noise reduction 20 dB(A)

Energy savings 58.9 scfm

Technical data

Replace open pipe Ø (inch)3/8

Blowing force3.5 lbs

Air consumption (scfm)50.0

Sound level (dB(A))92

Nozzle technologyMulti-Laval

Material (nozzle)1.4404 (316L)

ConnectionNPT 3/8"

Connection typeFemale

Weight (lbs)2.330

Max temp. (°F)158

Max op. pressure (psi)145

Benefits when replacing an open pipe

Replace open pipe Ø (inch)3/8

Noise reduction20 [dB(A)]75%

Energy savings58.9 [scfm]54%

Material specification: EN 1.4301, PTFE, CU, EN 1.4404, EN 1.4305, PC, PA, TPU

Blowing properties at different pressures

Pressure (psi)

406080100120

Blowing force (oz)

30.847.664.481.298.0

Air consumption (scfm)

32.443.754.966.177.2

Sound level (dB(A))

89.491.593.094.295.1

Blowing coverage (inch)

1.43

2.23

4.62

6.22

Technical specifications

See basic information about the technical data. Read more
