AIR NOZZLE
SILVENT X05-400
Item number: 0X050570068, 0X050670068

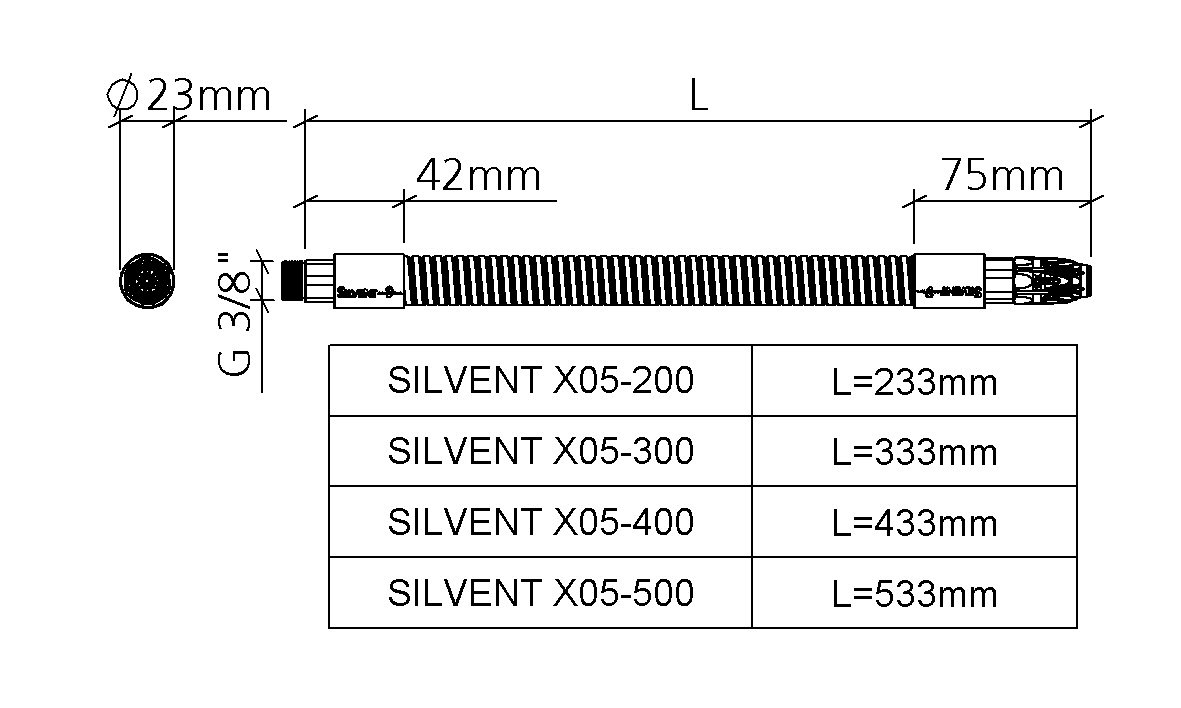

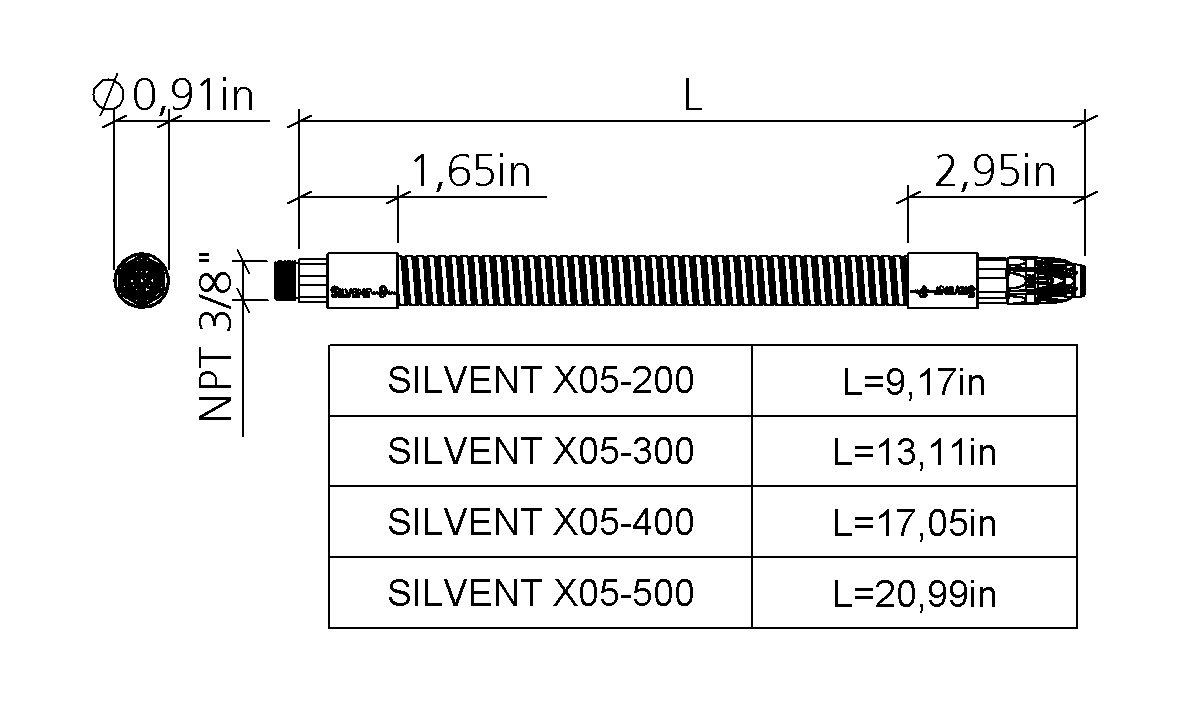

SILVENT X05-200 - X05-500: nozzle mounted on a bendable stainless steel FlexBlow hose that keeps the desired position, even when blowing at high pressure. Available in 4 different standard lengths. The FlexBlow hose has a 3/8" male connection thread. Otherwise, the same performance as X05.
Noise reduction 20 dB(A)
Energy savings 58.9 scfm
Technical data
Replace open pipe Ø (mm)10
Blowing force (N)16.0
Air consumption (Nm³/h)85
Sound level (dB(A))92
Nozzle technologyMulti-Laval
Material (nozzle)1.4404 (316L)
ConnectionG 3/8"
Connection typeMale
Weight (g)387
Max temp (°C)260
Max op. pressure (MPa)1.0
Benefits when replacing an open pipe
Replace open pipe Ø (mm)10
Noise reduction20 [dB(A)]75%
Energy savings100 [Nm³/h]54%
Material specification: EN 1.4301, PTFE, CU, EN 1.4404
Blowing properties at different pressures
Pressure (kPa)
2004006008001000
Blowing force (N)
6.212.819.626.333.2
Air consumption (Nm³/h)
44.158.6101.0126.0155.0
Sound level (dB(A))
88.491.092.895.496.1
Blowing coverage (mm)
36
76
116
156
50
100
200
300
Technical data
Replace open pipe Ø (inch)3/8
Blowing force3.5 lbs
Air consumption (scfm)50.0
Sound level (dB(A))92
Nozzle technologyMulti-Laval
Material (nozzle)1.4404 (316L)
ConnectionNPT 3/8"
Connection typeMale
Weight (lbs)0.853
Max temp. (°F)500
Max op. pressure (psi)145
Benefits when replacing an open pipe
Replace open pipe Ø (inch)3/8
Noise reduction20 [dB(A)]75%
Energy savings58.9 [scfm]54%
Material specification: EN 1.4301, PTFE, CU, EN 1.4404
Blowing properties at different pressures
Pressure (psi)
406080100120
Blowing force (oz)
30.847.664.481.298.0
Air consumption (scfm)
32.443.754.966.177.2
Sound level (dB(A))
89.491.593.094.295.1
Blowing coverage (inch)
1.43
2.23
4.62
6.22
2
4
8
12
Technical specifications
See basic information about the technical data. Read more
Instructions for use
Read Silvent Group General Instructions for Use before you install the product.
