Home » Products » Air Nozzles » 920 A

AIR NOZZLE

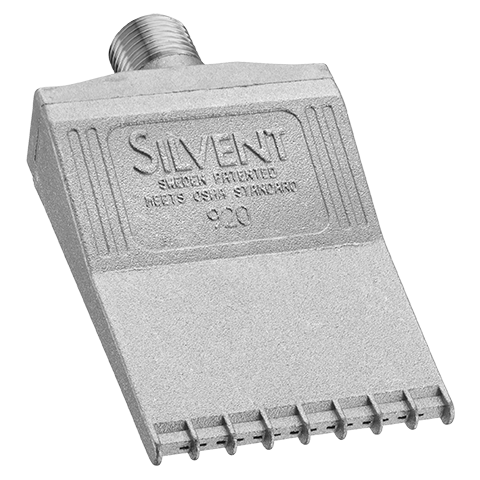

SILVENT 920 A

Item number: 09200139105, 09200239105

Flat nozzle (zinc)

SILVENT 920 A: flat nozzle that generates a broad and efficient blowing pattern. Outstanding for use wherever a wide but thin striking surface is required. Flat nozzles are suitable for most areas of application, such as: drying, transporting, cooling, cleaning, etc. Often used in manifold systems, providing silent and highly efficient air knives. Made of zinc with 1/4" male connection thread. The exhaust ports are protected from external forces by fins.

Noise reduction 21 dB(A)

Energy savings 21.8 scfm

Technical data

Replace open pipe Ø (inch)1/4

Blowing force1.2 lbs

Air consumption (scfm)17.7

Sound level (dB(A))81

Nozzle technologySlot

Material (nozzle)Zn

ConnectionNPT 1/4"

Connection typeMale

Weight (lbs)0.265

Max temp. (°F)158

Max op. pressure (psi)145

Benefits when replacing an open pipe

Replace open pipe Ø (inch)1/4

Noise reduction21 [dB(A)]77%

Energy savings21.8 [scfm]55%

Material specification: Zn ZP0410 EN 12844, NBR 70

Blowing properties at different pressures

Pressure (psi)

406080100120

Blowing force (oz)

10.416.222.127.833.7

Air consumption (scfm)

10.815.420.024.629.2

Sound level (dB(A))

75.179.382.585.087.0

Blowing coverage (inch)

Drawing of blowing cover

3.15

3.94

5.51

7.09

2

4

8

12

Technical specifications

See basic information about the technical data. Read more
