AIR NOZZLE
SILVENT 9002W-S+-400
Item number: 90020569623, 90020669623

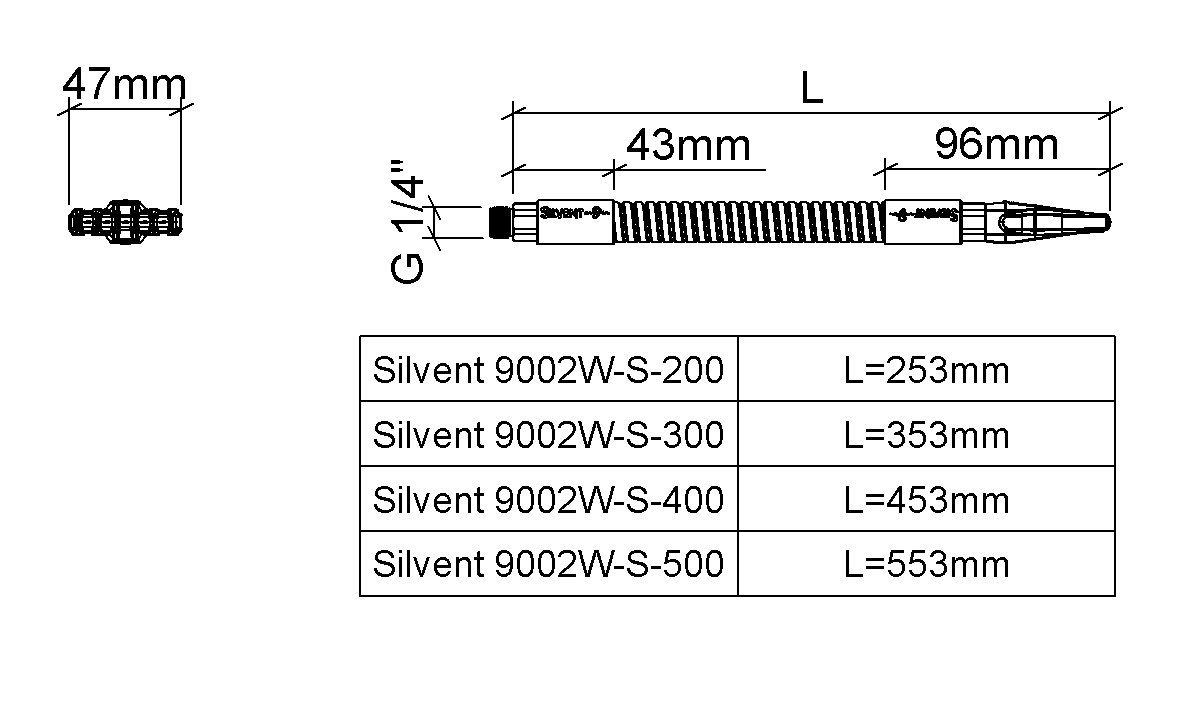

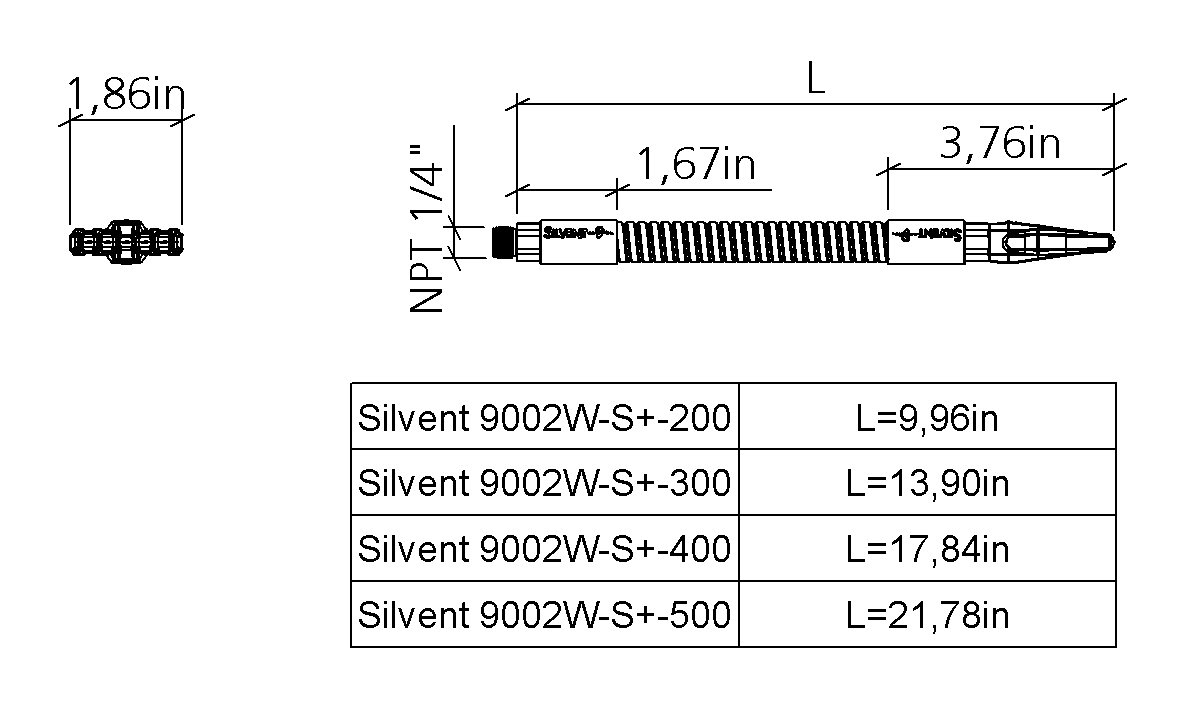

SILVENT 9002W-S+-200 - 9002W-S+-500: nozzle mounted on a bendable stainless steel FlexBlow hose that keeps the desired position, even when blowing at high pressure. Available in 4 different standard lengths. The FlexBlow hose has a 1/4" male connection thread. Otherwise, the same performance as 9002W-S+.
Noise reduction 19 dB(A)
Energy savings 17.1 scfm
Technical data
Replace open pipe Ø (mm)6
Blowing force (N)7.5
Air consumption (Nm³/h)37.5
Sound level (dB(A))83
Nozzle technologySlot
Material (nozzle)1.4404 (316L)
ConnectionG 1/4"
Connection typeMale
Max temp (°C)260
Max op. pressure (MPa)1.0
Benefits when replacing an open pipe
Replace open pipe Ø (mm)6
Noise reduction19 [dB(A)]73%
Energy savings29 [Nm³/h]43%
Material specification: EN 1.4301, PTFE, CU, EN 1.4404
Technical data
Replace open pipe Ø (inch)1/4
Blowing force1.7 lbs
Air consumption (scfm)22.1
Sound level (dB(A))83
Nozzle technologySlot
Material (nozzle)1.4404 (316L)
ConnectionNPT 1/4"
Connection typeMale
Weight (lbs)0.000
Max temp. (°F)500
Max op. pressure (psi)145
Benefits when replacing an open pipe
Replace open pipe Ø (inch)1/4
Noise reduction19 [dB(A)]73%
Energy savings17.1 [scfm]43%
Material specification: EN 1.4301, PTFE, CU, EN 1.4404
Technical specifications
See basic information about the technical data. Read more
Instructions for use
Read Silvent Group General Instructions for Use before you install the product.
