AIR NOZZLE
SILVENT 011
Item number: 00110149237, 00110249238
- Stainless steel slot nozzle
SILVENT 011: a robust stainless steel nozzle. Stainless steel is necessary in applications involving e.g. high ambient temperatures, the food processing industry, or intensive mechanical nozzle wear. Noise level is halved and energy savings are considerable in comparison with "open pipe blowing".
Noise reduction 14 dB(A)
Energy savings 6.5 scfm

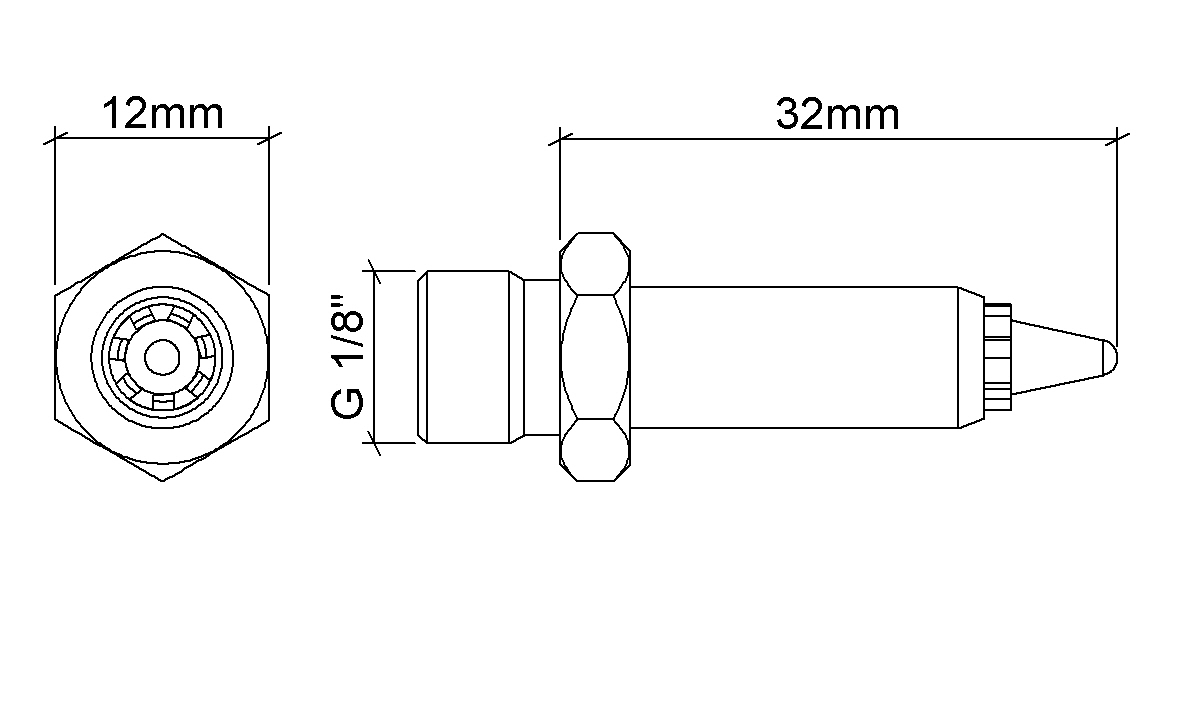

Technical data
Replace open pipe Ø (mm)4
Blowing force (N)3.2
Air consumption (Nm³/h)19
Sound level (dB(A))81
Nozzle technologySlot
Material (nozzle)1.4404 (316L)
ConnectionG 1/8"
Connection typeMale
Weight (g)10
Max temp (°C)400
Max op. pressure (MPa)1.0
Benefits when replacing an open pipe
Replace open pipe Ø (mm)4
Noise reduction14 [dB(A)]62%
Energy savings11 [Nm³/h]37%
Material specification: EN 1.4305, EN 1.4404
Blowing properties at different pressures
Pressure (kPa)
2004006008001000
Blowing force (N)
1.42.84.15.57.0
Air consumption (Nm³/h)
9.515.522.529.536.0
Sound level (dB(A))
72.077.580.785.088.0
Blowing coverage (mm)
24
38
80
114
50
100
200
300

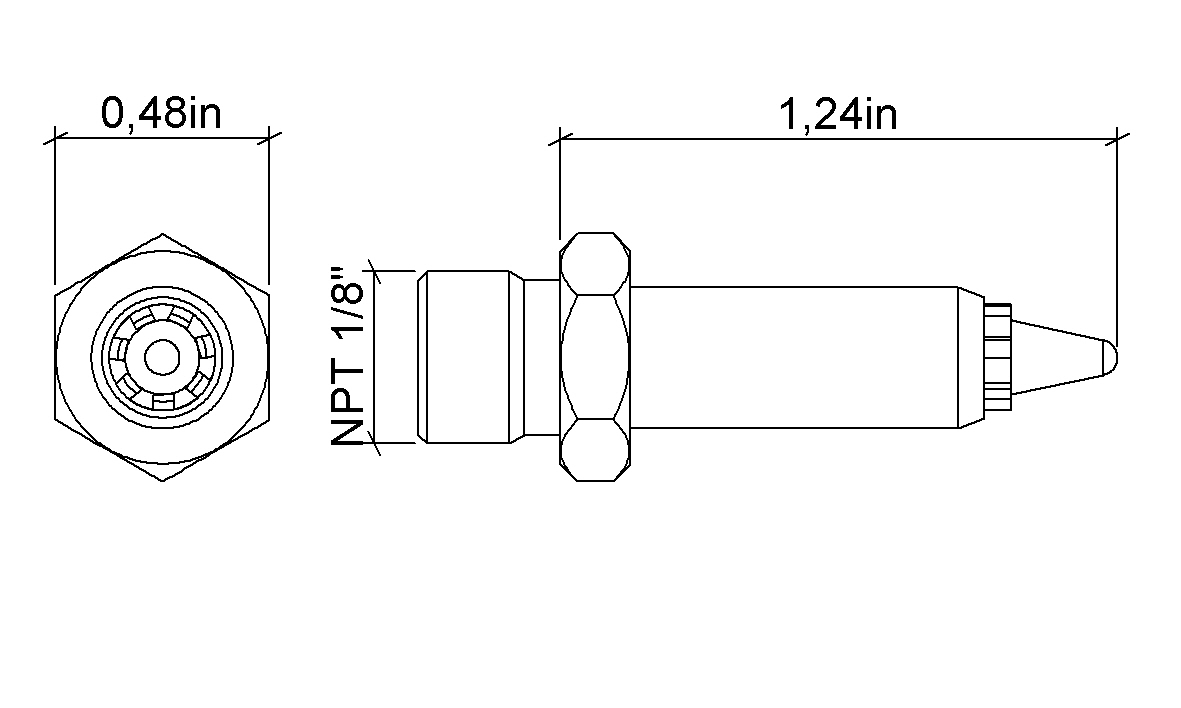

Technical data
Replace open pipe Ø (inch)5/32
Blowing force11.3 oz
Air consumption (scfm)11.2
Sound level (dB(A))81
Nozzle technologySlot
Material (nozzle)1.4404 (316L)
ConnectionNPT 1/8"
Connection typeMale
Weight (lbs)0.022
Max temp. (°F)752
Max op. pressure (psi)145
Benefits when replacing an open pipe
Replace open pipe Ø (inch)5/32
Noise reduction14 [dB(A)]62%
Energy savings6.5 [scfm]37%
Material specification: EN 1.4305, EN 1.4404
Blowing properties at different pressures
Pressure (psi)
406080100120
Blowing force (oz)
6.810.113.316.720.1
Air consumption (scfm)
7.28.812.515.217.9
Sound level (dB(A))
74.377.880.582.884.9
Blowing coverage (inch)
0.94
1.50
3.15
4.49
2
4
8
12
Technical specifications
See basic information about the technical data. Read more
Instructions for use
Read Silvent Group General Instructions for Use before you install the product.
