AIR BLOW GUN

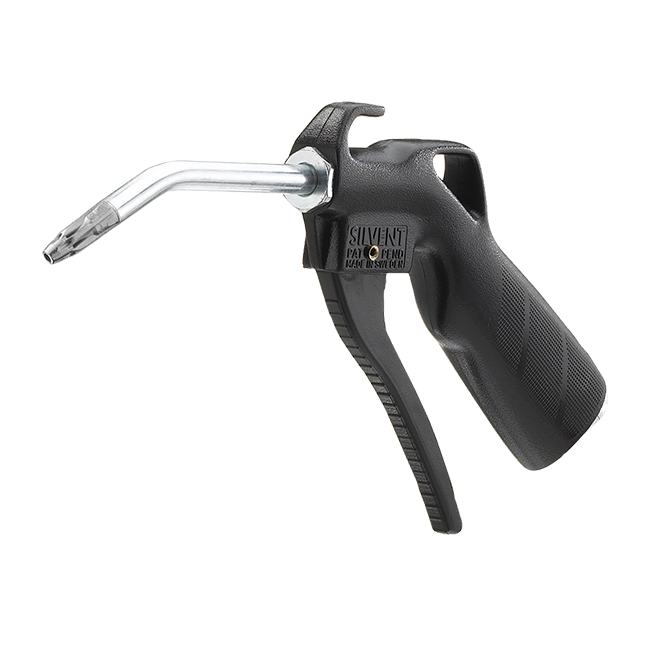

SILVENT 500-X
Item number: 05000169752, 05000269752
- Stainless steel multi-Laval nozzle
SILVENT 500-X: is an ergonomic air blow gun designed with a revolutionary air nozzle technology for optimal efficiency, safety and noise reduction. The new patented multi-Laval technology constitutes a new dimension in blowing technology. The effect is achieved by optimizing the air pressure change from potential energy to aimed concentrated kinetic energy. The stainless steel air nozzle is the outcome of Silvent’s leading R&D in compressed air dynamics. The air blow gun is suitable in any industry where ergonomic tools are required to make the job quick, quiet and with the operator’s safety in mind.
Noise reduction 17 dB(A)
Energy savings 9.4 scfm
No muscle strain
The trigger mechanism requires a pressure of only 7 N (25 oz), which means that the gun can be used frequently without the risk of taxing muscles. The average finger strength of men is 96 N (339 oz) and of women, 81 N (295 oz). When less than 10% of the maximum strength of a finger is used, no injury arises due to muscle strain.
Ergonomics and precision
The combination of an ergonomic handle and a short trigger for one or two fingers provides a perfect grip as well as the possibility to aim the air blow gun with precision and feeling. The ergonomic design of the handle automatically gives you the optimal blowing position so that you do not need to bend your wrist.
Triggers
Fitted with short triggers as standard to provide the most ergonomic grip. If desired however, they can also be equipped with extended triggers.
The trigger mechanism requires a pressure of only 7 N (25 oz), which means that the gun can be used frequently without the risk of taxing muscles. The average finger strength of men is 96 N (339 oz) and of women, 81 N (295 oz). When less than 10% of the maximum strength of a finger is used, no injury arises due to muscle strain.
Ergonomics and precision
The combination of an ergonomic handle and a short trigger for one or two fingers provides a perfect grip as well as the possibility to aim the air blow gun with precision and feeling. The ergonomic design of the handle automatically gives you the optimal blowing position so that you do not need to bend your wrist.
Triggers
Fitted with short triggers as standard to provide the most ergonomic grip. If desired however, they can also be equipped with extended triggers.
Technical data
Replace open pipe Ø (mm)4
Blowing force (N)2.8
Air consumption (Nm³/h)14
Sound level (dB(A))78
Nozzle technologyMulti-Laval
Material (nozzle)1.4404 (316L)
ConnectionG 1/4"
Connection typeFemale
Weight (g)143
Max temp (°C)70
Max op. pressure (MPa)0.7
SUVA cert. no.7289
Benefits when replacing an open pipe
Replace open pipe Ø (mm)4
Noise reduction17 [dB(A)]69%
Energy savings16 [Nm³/h]53%
Material specification: Delrin 100P BK602, NBR 70, EN 1.0718, EN 10305-1, Fzb, EN 1.4404
Blowing properties at different pressures
Pressure (kPa)
200400600
Blowing force (N)
1.22.33.4
Air consumption (Nm³/h)
8.012.016.0
Sound level (dB(A))
727679
Technical data
Replace open pipe Ø (inch)5/32
Blowing force9.9 oz
Air consumption (scfm)8.2
Sound level (dB(A))78
Nozzle technologyMulti-Laval
Material (nozzle)1.4404 (316L)
ConnectionNPT 1/4"
Connection typeFemale
Weight (lbs)0.315
Max temp. (°F)158
Max op. pressure (psi)100
SUVA cert. no.7289
Benefits when replacing an open pipe
Replace open pipe Ø (inch)5/32
Noise reduction17 [dB(A)]69%
Energy savings9.4 [scfm]53%
Material specification: Delrin 100P BK602, NBR 70, EN 1.0718, EN 10305-1, Fzb, EN 1.4404
Blowing properties at different pressures
Pressure (psi)
406080100
Blowing force (oz)
5.78.511.214.0
Air consumption (scfm)
5.26.88.410.0
Sound level (dB(A))
74767880
Technical specifications
See basic information about the technical data. Read more
Instructions for use
Read Silvent Group General Instructions for Use before you install the product.
