4010-S

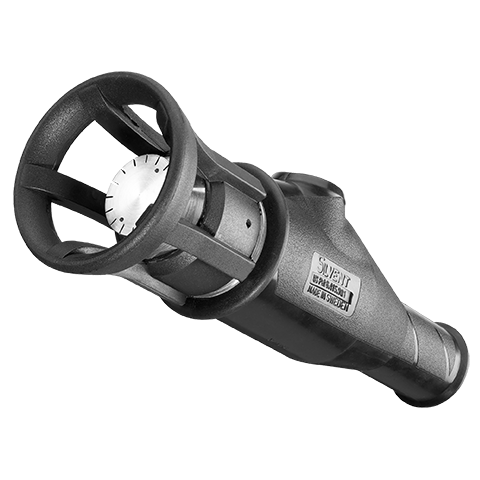

SILVENT 4010-S: combines highly concentrated blowing force with an easily maneuverable valve construction and low sound level. Designed with aerodynamic slots to attain optimal utilization of your compressed air while keeping the sound level to an absolute minimum. The valve is power-steered, making it easy to operate with just one hand. Its "dead man's grip" closes instantly if the handle is dropped. Suitable for applications where 100% force is always required.
Technical data
Replace open pipe Ø (mm)14
Blowing force (N)30.0
Air consumption (Nm³/h)216
Sound level (dB(A))99
Material (nozzle)1.4305 (303)
ConnectionG 3/4"
Connection typeFemale
Weight (g)2358
Max temp (°C)70
Max op. pressure (MPa)0.7
Benefits when replacing an open pipe
Replace open pipe Ø (mm)14
Noise reduction20 [dB(A)]75%
Energy savings147 [Nm³/h]41%
Material specification: EN AB 43200, EN AW 2011 T8, EN 10088-3, NBR, PC, TPU EN AW 6082, EN 1.4305
Technical data
Replace open pipe Ø (inch)9/16
Blowing force6.6 lbs
Air consumption (scfm)127.1
Sound level (dB(A))99
Material (nozzle)1.4305 (303)
ConnectionNPT 3/4"
Connection typeFemale
Weight (lbs)5.198
Max temp. (°F)158
Max op. pressure (psi)100
Benefits when replacing an open pipe
Replace open pipe Ø (inch)9/16
Noise reduction20 [dB(A)]75%
Energy savings86.5 [scfm]41%
Material specification: EN AB 43200, EN AW 2011 T8, EN 10088-3, NBR, PC, TPU EN AW 6082, EN 1.4305
Technical specifications
See basic information about the technical data. Read more
Instructions for use
Read Silvent Group General Instructions for Use before you install the product.
