AIR NOZZLE

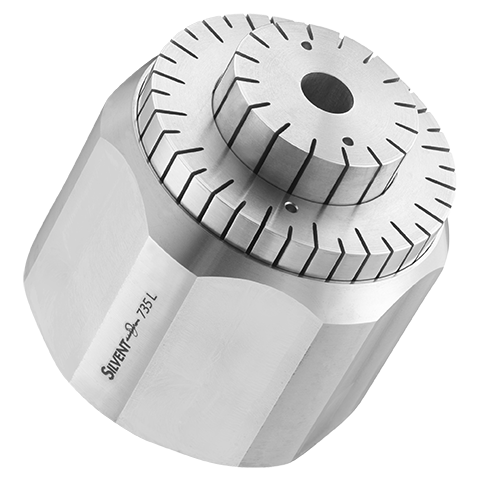

SILVENT 735 L

Item number: 07350169078, 07350269078

  • Stainless steel Laval nozzle

SILVENT 735 L: with a stainless steel Laval nozzle. Compressed air is utilized optimally in this nozzle, and its introduction constitutes a new dimension in blowing technology. The effect is achieved by surrounding a core of air traveling at supersonic speed with a protective film of air moving parallel to the central air jet. The central stream of air in the SILVENT 735 L is generated by a Laval nozzle. The design of the nozzle converts all of the energy stored in the compressed air into kinetic energy without permitting the air jet to expand laterally after it has passed through the nozzle. The protective sheath of air prevents the core stream from being slowed down by the surrounding air and allows it to be utilized at full effect. Turbulence is minimized, thereby lowering the noise level. The entire nozzle is made of stainless steel, making it suitable for use in virtually any environment where extra high blowing forces are required, for example, within the paper and manufacturing industries, steel mills and chemical plants.

Noise reduction 22 dB(A)

Energy savings 391 Nm3/h

Technical specifications

See basic information about the technical data. Read more

Instructions for use

Read Silvent Group General Instructions for Use before you install the product.
