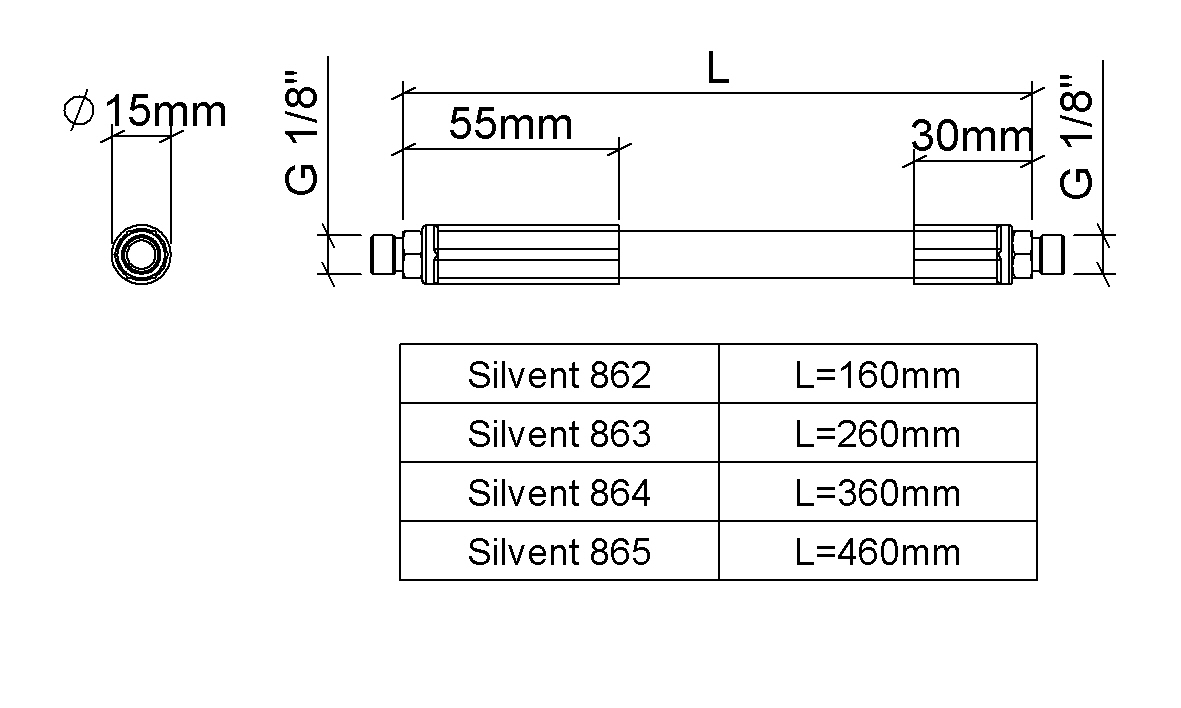

Technical data
ConnectionG 1/8"
Connection typeMale
Dimensions (mm)Ø15x276±5%
Weight (g)97
Max temp (°C)70
Max op. pressure (MPa)1.0
Material specification: Cu, NBR, CW614N

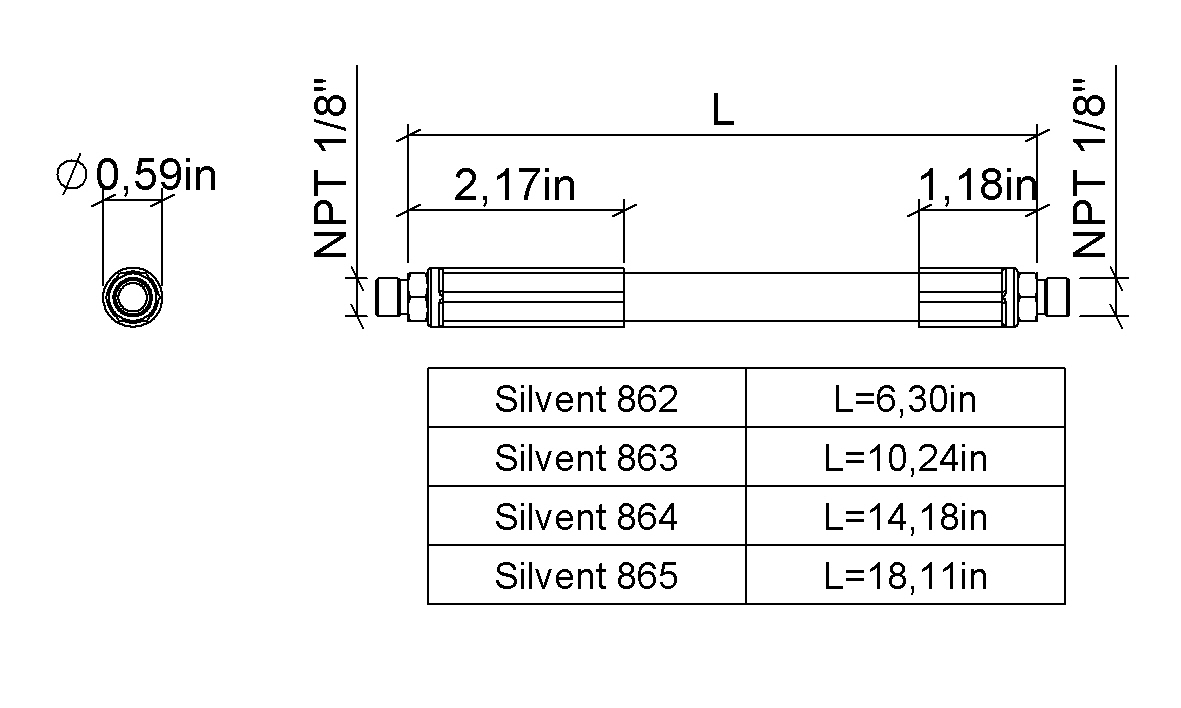

Technical data
ConnectionNPT 1/8"
Connection typeMale
Dimension (inch)Ø0.59x10.87±5%
Weight (lbs)0.214
Max temp. (°F)158
Max op. pressure (psi)145
Material specification: Cu, NBR, CW614N
Instructions for use
Read Silvent Group General Instructions for Use before you install the product.
